3-Axis Optical Gyro IMU

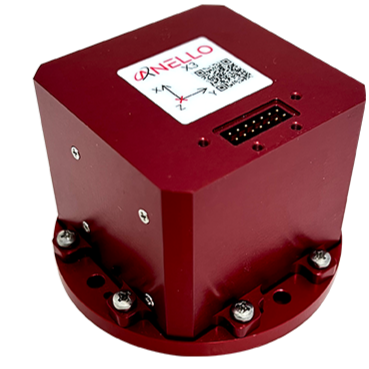

ANELLO X3 IMU
Ultra-Compact 3-Axis Optical Gyro IMU for Aerial and Maritime Missions
The world's smallest and lightest 3-Axis high performance optical gyroscope IMU — built on three ANELLO SiPhOG™ optical smart sensors for dependable navigation in GPS-denied environments.
Product Highlights
Bias Instability
< 0.5°/hr
Angle Random Walk
< 0.05°/√hr
Interfaces
UART, RS-422
ANELLO X3 IMU
High-Performance GNSS-Denied Navigation
3-Axis SiPhOG™
Accel Bias Instability
< 20µg
Compact & Rugged
< 182g · IP54
Hover any spec to see the detail behind the number.
Overview
The ANELLO X3 IMU is the world's smallest and lightest 3-Axis high performance optical gyroscope IMU.
The ANELLO X3 IMU leverages three state-of-the-art ANELLO SiPhOG™ (Silicon Photonics Optical Gyroscope) units as low-noise and low-drift optical smart sensors, each containing its own independent 6-Axis redundant IMU sensor.
The ANELLO X3 IMU offers seamless integration with maritime platforms and also with PX4 and ArduPilot — enabling precise, low-drift inertial navigation for autonomous aerial systems. This compatibility allows developers to easily leverage ANELLO's cutting-edge optical gyroscope technology within widely adopted open-source flight stacks, enhancing position accuracy and stability in GPS-denied environments.
The ANELLO X3 IMU's high-performance and plug-and-play integration streamline development, making it an ideal choice for aerial and maritime platforms such as drones, UAVs, VTOLs, UUVs, and ROVs that require dependable navigation in challenging environments.
The ANELLO X3 IMU integrates with PX4 and ArduPilot for aerial applications and also delivers robust performance on maritime platforms
ANELLO Drone Navigation Solution for GPS-Denied
ANELLO X3 IMU + ANELLO AI
ANELLO X3 + ANELLO AI Solution
Automatically detects loss of GPS and creates a navigation solution, allowing the drone to continue to fly through GPS jamming.
Drone Solution Today
Drone auto pilot detects loss of GPS and is forced to execute a failure mode: hover or land.
Key Features
ANELLO X3 IMU Demo on a Drone
Specifications
XYZ Optical Gyroscope Performance
- Rate Range
- ±400°/s
- Bias Instability
- < 0.5°/hr
- Angle Random Walk
- < 0.05°/√hr
- Scale Factor Error
- < 0.1% (0–200°/s)
- Scale Factor Over Temp
- < 0.1% typical
- Bandwidth
- Up to 100 Hz
MEMS IMU Performance
| MEMS IMU | Range | Bias Instability | Random Walk |
|---|---|---|---|
| Accelerometer | 16g | 20µg | 0.03 m/s/√hr |
| Gyroscope | up to 400°/s | 1.5°/hr | 0.3°/√hr |
Serial Communication
- UART and RS-422
- Up to 921600 Baud
- UART and RS-422 Sample Rate
- Up to 200 Hz
Electrical
- Connector
- SAMTEC 14-pin Male
- Sync / PPS In
- TTL
- Built-In-Test
- TTL
- Voltage Supply
- 4–24 VDC (regulated)
- Power Consumption
- 4W typical
Environmental
- Sealing
- IP54
- Temperature1
- -10 to +50°C
- Shock
- 20g, 20ms, 6 Shocks per Axis
- Vibration
- 4g rms, 20–2 kHz, 30min per Axis
Notes: 1. Option for -20 to +70°C extended range upgrade.
Physical
- Size
- 2" (51mm) × 2" (51mm) × 1.75" (44.5mm)
- Weight
- < 0.4 lbs (182g)
Resources & Case Studies
ANELLO X3 in the News
Featured coverage of ANELLO's optical gyro technology for resilient drone navigation.
Read the article →GPS-Denied Drone Navigation
How the X3 IMU keeps UAVs on course through GPS jamming and spoofing.
Explore the use case →Flight Through GPS Jamming
A field demonstration of continuous navigation with the X3 IMU + ANELLO AI.
Read the case study →Explore ANELLO Navigation Products
ANELLO X3 IMU FAQ
The ANELLO X3 IMU is the world's smallest and lightest 3-Axis high performance optical gyroscope IMU. It combines three ANELLO SiPhOG™ (Silicon Photonics Optical Gyroscope) units — each with its own independent 6-Axis redundant IMU sensor — into a compact, fully calibrated inertial measurement unit for aerial and maritime platforms.
Yes. The ANELLO X3 IMU integrates with PX4 and ArduPilot, allowing developers to leverage ANELLO's optical gyroscope technology within widely adopted open-source flight stacks — enhancing position accuracy and stability in GPS-denied environments.
With the ANELLO X3 IMU + ANELLO AI solution, the system automatically detects loss of GPS and creates a navigation solution that allows the drone to continue flying through GPS jamming — instead of being forced into a hover-or-land failure mode.
The ANELLO X3 IMU is built for aerial and maritime platforms such as drones, UAVs, VTOLs, UUVs, and ROVs that require dependable, low-drift inertial navigation in challenging or GPS-denied environments.
